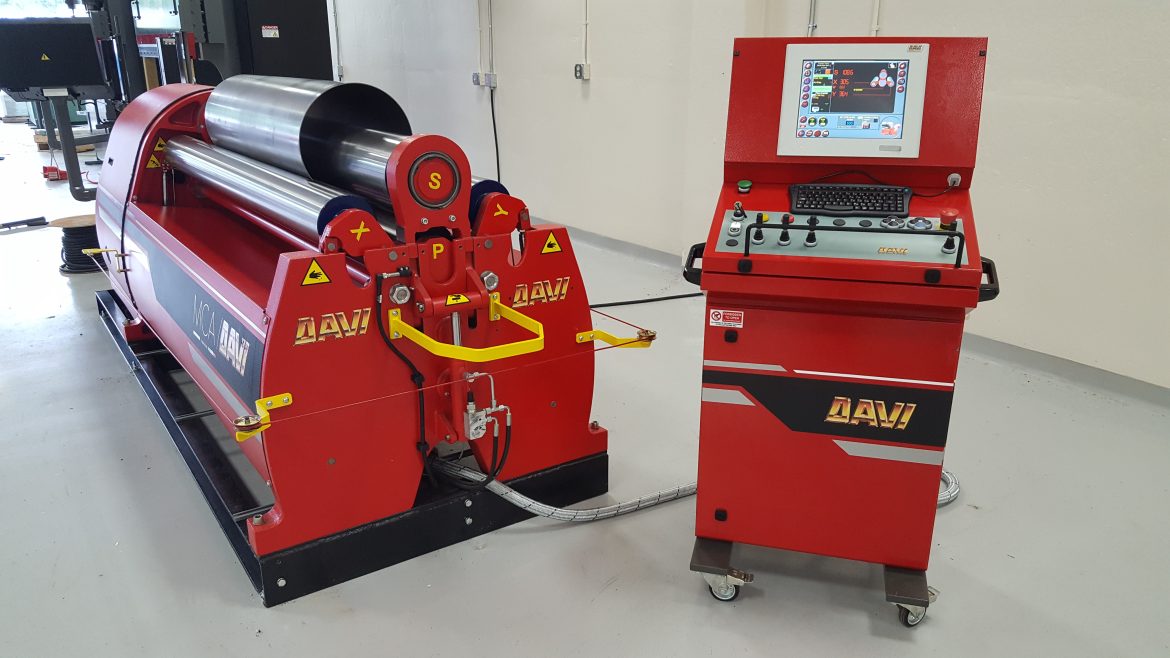

Davi’s MCA 4 roll series provides plate rolling of material up to 10-15 mm (½ inch) thick. The four-roller design removes the need for pre-bending, allowing jobs to finish in one continuous cycle from the initial feeding of the plate. The MCA 4 roll series utilizes Servo-Tronic roll parallel control, which uses hydraulic and electronic systems simultaneously.
The new series features a low frame, offering small diameter cone rolling and easier removal of finished products for straight and horizontal plate rolls. The series has automatic and hydraulic assisted braking for clamping rolls to ensure accurate plate feeding. Plates are loaded horizontally to allow the use of an in-feed conveyor and automated loading and unloading systems.
Davi offers different choices of CNC controls for the MCA 4 roll series: an entry-level CNC to roll parts in automatic mode or advanced controls with granular functions and self-programming options. Davi also provides the option of storing all of the data and the parts program into a remote server for ERP data exchange.
Davi offers the MCA 4 roll series in ten different models featuring roll widths of up to 122 inches, rolling thickness of up to 5/8 inches, pre-bending thickness of up to 1/2 inches, top roll diameter of up to 12 inches, and bottom clamping roll diameter of up to 11 inches, but special customizations and accommodations can be fulfilled by Davi on request.
For more information: https://www.davi.com/us/en-us/MCA_FOUR_ROLL
