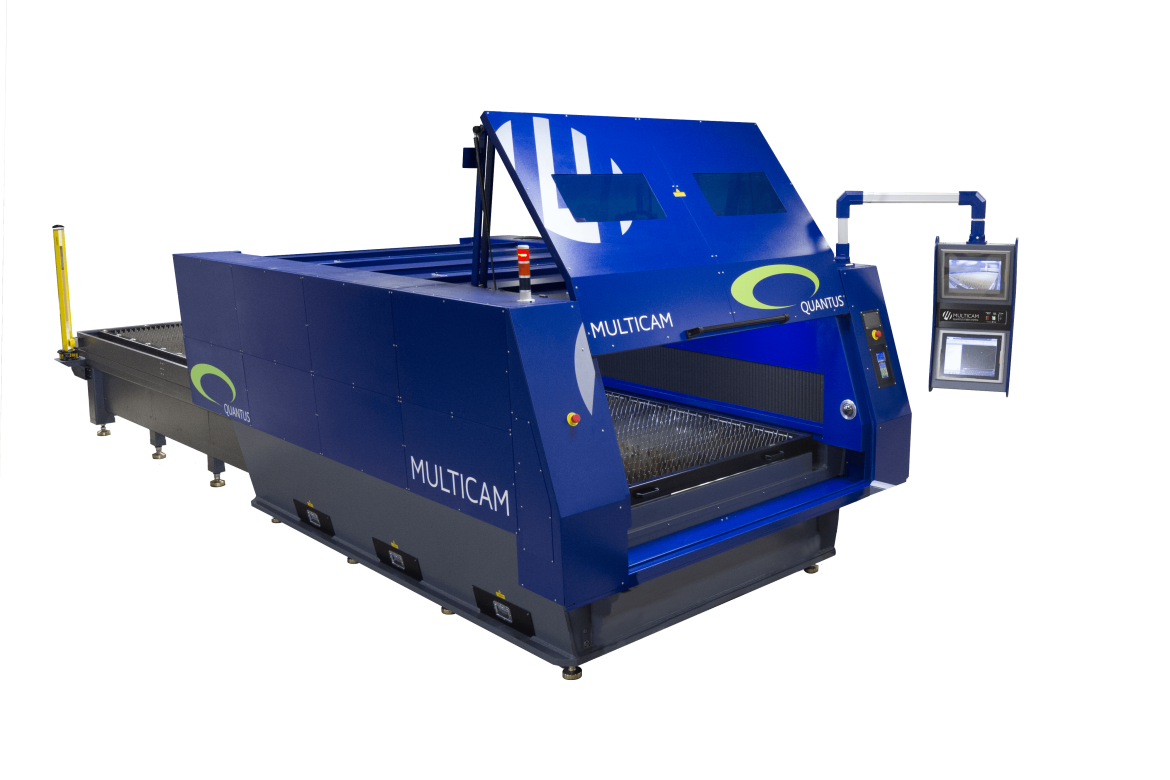

MultiCam’s (Irving, TX) Quantus Fiber Laser features laser cutting with power levels from 1,500 to 8,000 Watts. The machine uses ground ball screw drive in the Y axis and ground helical rack and pinion in the X axis.
Quantus uses a Precitec ProCutter cutting head, which offers non-contact height following and a choice of cutting optics from 50mm to 200mm. Quantus features an integrated control pendant and is configurable with NLight power source (1-6 kW).
The unit comes standard with a Digital Auto Focus (DAF), which enables the system to automatically set the optimal focus from a predefined process table and adjust it on the fly for piercing.
It is available in three different models: 4×4, 4×8, and 5×10. The models have maximum load weights of 1,000, 1,000, and 2,000 lbs., respectively. A dual motor-driven gantry provides a repeatability of 0.001 inches (0.025 mm).
Quantus features a unitized industrial frame and uses MultiCam’s Coreo software, which provides complete CAD/CAD solutions. It comes standard with a laser safety shroud, side air blow off, and fully programmable gas controls.
For more information: https://www.multicam.com/quantus-fiber-laser/
