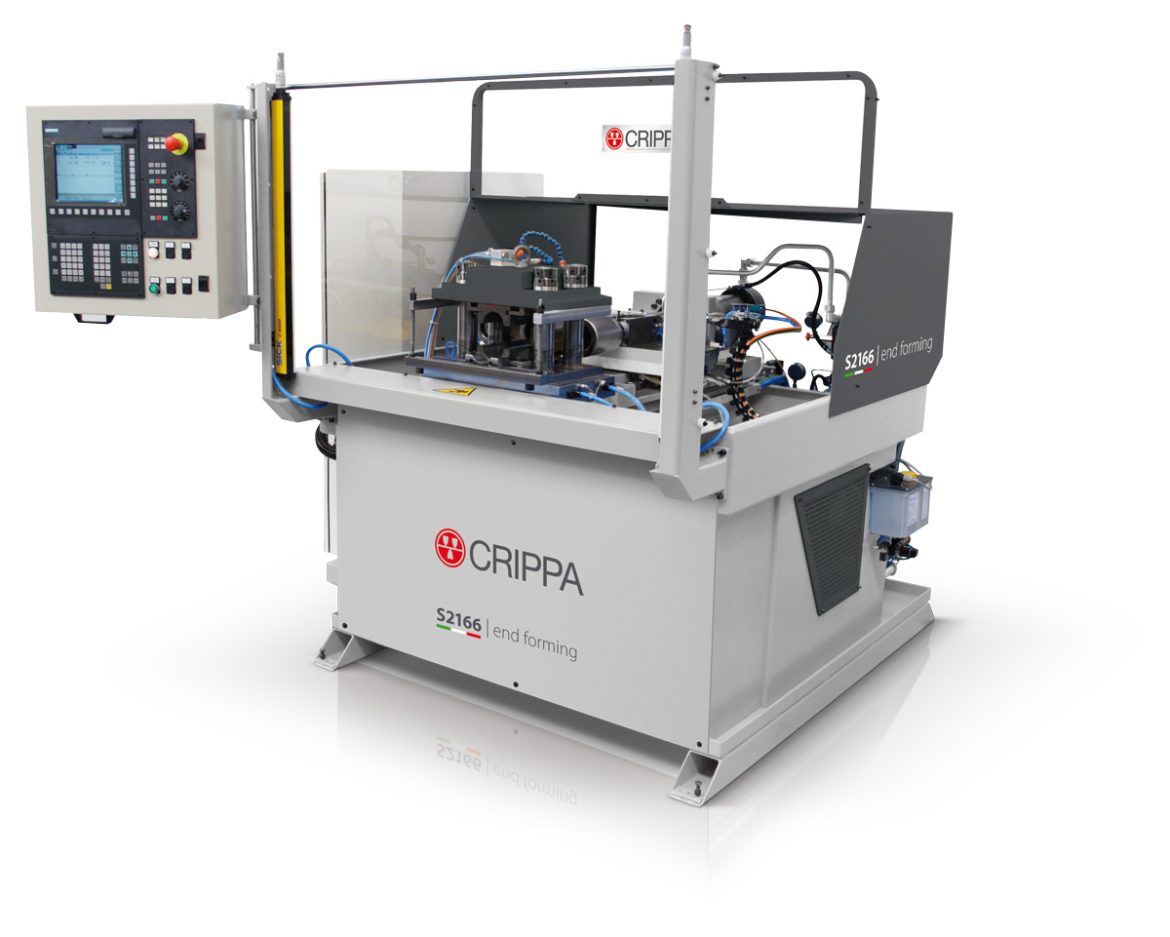

Crippa’s (Arosio, Italy) Heavy-S S2166 uses complex tools and can perform up to six forming operations in a single cycle: punching, butting, rolling, boring, threading, and turning. The Heavy-S S2166 has a deformation force of 16 tons and a vertical clamping force of 20 tons. The machine features fast transitions between phases and a tool change speed of 1,772 inches/min (45,000 mm/min).
The Heavy-S S2166 has four removable columns to manage movement, and up to two of the columns may be dismantled if needed. The Heavy-S S2166 features an open space layout, which facilitates accessibility for operations involving assembly, tool changing, and maintenance. The compact design and optimized space provide easy integration into new or pre-existing work cells.
The Heavy-S S2166 features automated loading and unloading processes and integrated self-learning software. It is compatible with tubes up to 3 inches (76 mm) in diameter and has a maximum deformation length of 9.84 inches (250 mm). The Heavy-S S2166 has two CNC axes and features horizontal tool changing. It has a forming speed of 197 inches/min (5,000 mm/min) and a clamp length of 3.15 inches (80 mm).
For more information: https://www.crippa.it/us/heavy-s2166.html
