Until now, the epitome for an Ethernet interface in an IP20 environment has been the RJ45 connector. This connector is the most widely used in the world and, thus, loved by its users. However, many users have a controversial relationship with the RJ45 because the locking levers are weak and contact difficulties occasionally occur. As devices (including flat mobile devices, displays, smaller automation devices, cameras and sensors) become smaller, the size of the RJ45 limits the miniaturization potential. Thus, a smaller and stronger connector is on the wish list of many users and developers. They are also looking for Cat. 6a performance for 1/10 Gbit/s Ethernet at the control level.

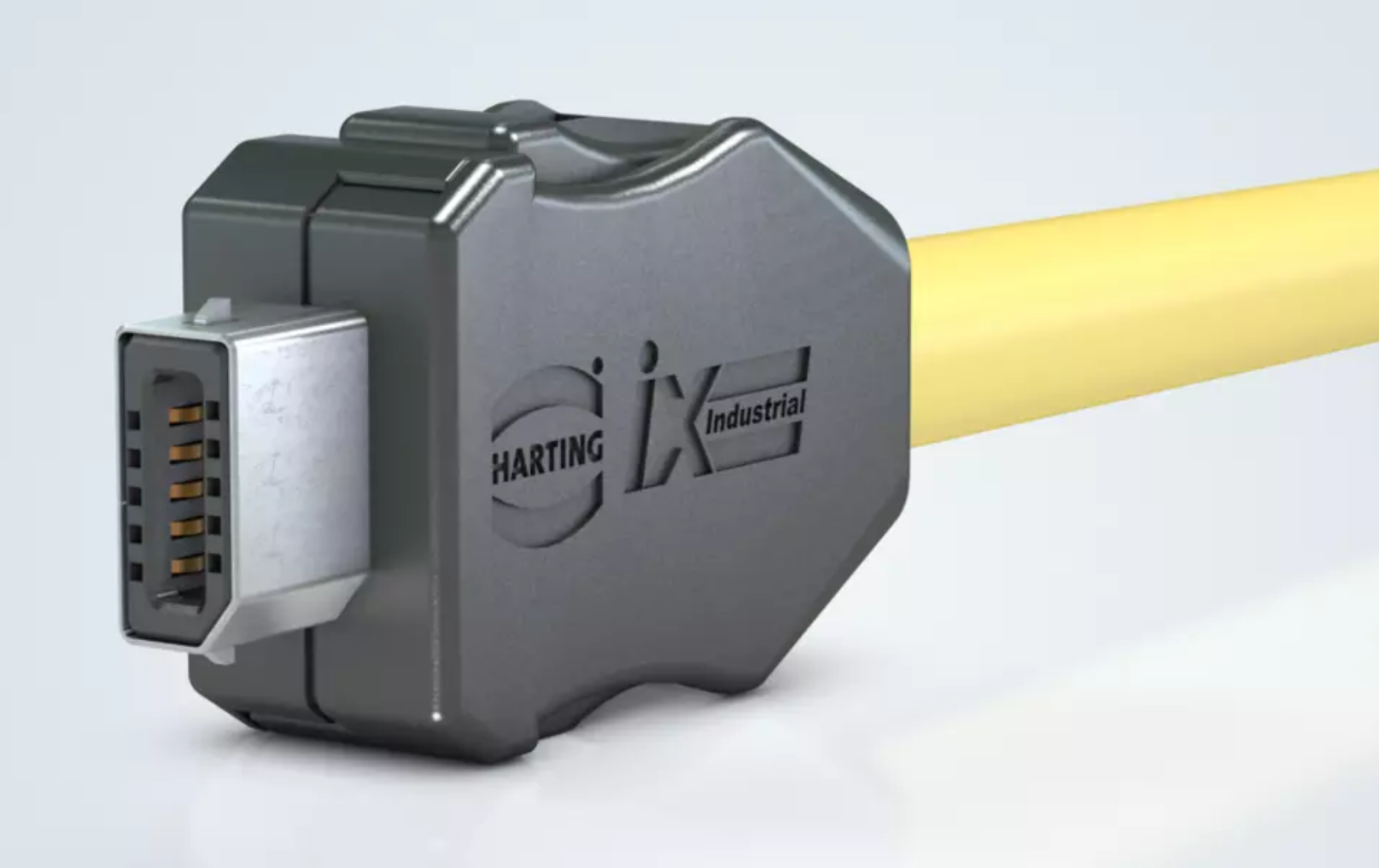

HARTING (Elgin, IL) is changing the wish list to an order list. HARTING’s ix Industrial is an integrated system that meets all these requirements; it is now an industry standard according to IEC 61076-3-124 and thus a reliable interface for device manufacturers as well as a miniaturized alternative to RJ45.
The ix Industrial® mating face, with its Cat. 6A performance, is ensured for the future to work with 1/10 Gb/s Ethernet. The high current-carrying capacity enables it to handle current and future PoE applications. This interface combines both data transmission and power supply, thus further reducing the installation space required for the connection technology in your applications.
The active locking mechanism between the female and male connectors uses two stable latching hooks made of metal. This gives you clear haptic feedback that the connection has been safely established. A robust crimp connection is used to connect the cable sheath and the plug connection. This creates a perfectly robust interface that complies with the high shock and vibration resistance of the EN 50155 railway specifications. A long service life with 5,000 mating cycles is guaranteed.
The active locking mechanism between the female and male connectors uses two stable latching hooks made of metal. This gives you clear haptic feedback that the connection has been safely established. A robust crimp connection is used to connect the cable sheath and the plug connection. This creates a perfectly robust interface that complies with the high shock and vibration resistance of the EN 50155 railway specifications. A long service life with 5,000 mating cycles is guaranteed.
The 70% less installation space used by the ix Industrial® interface, in comparison to typical RJ45 sockets, enables significant shrinking for all types of devices.
More information: https://www.harting.com/en-US/s/harting-ix-industrial
