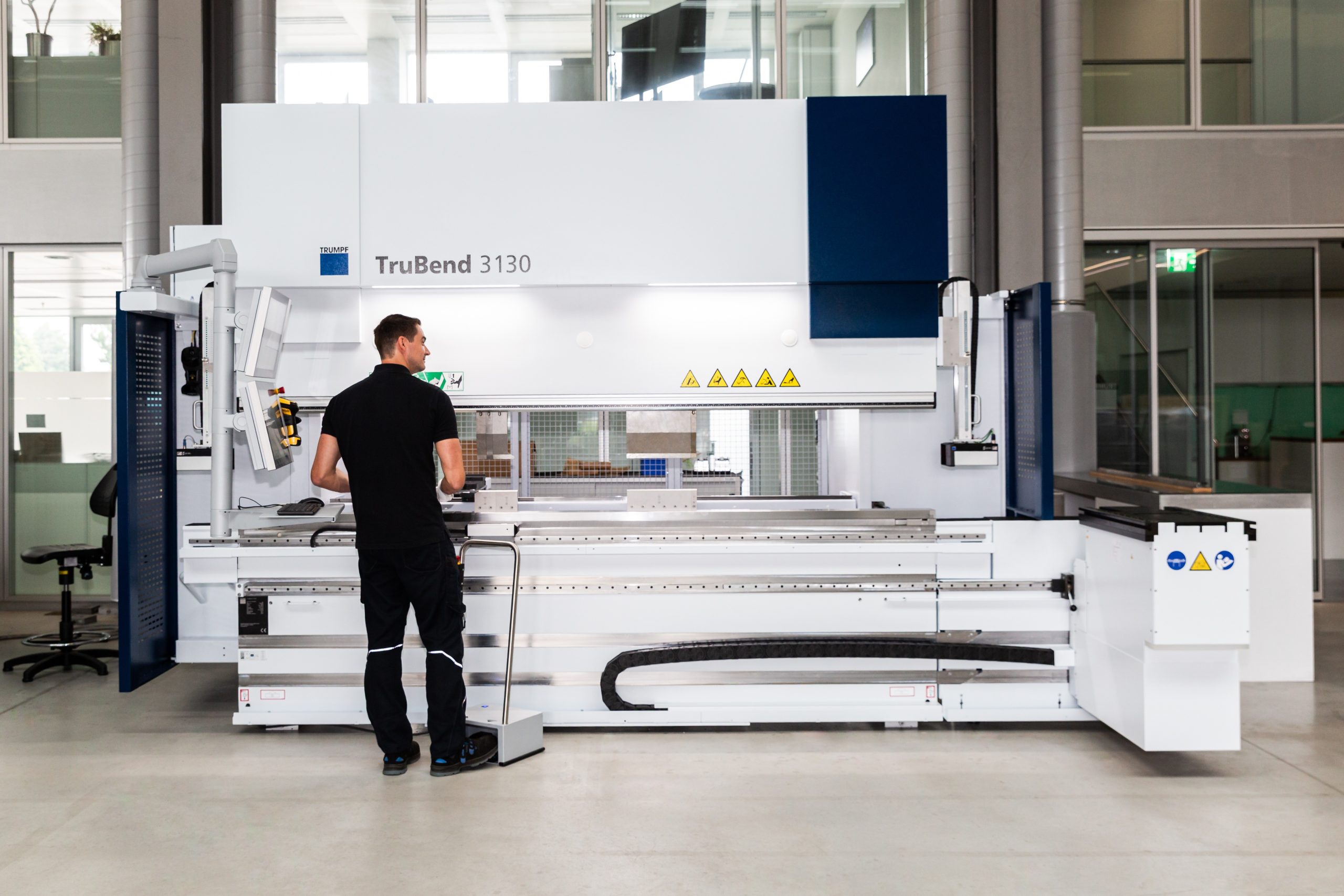

TRUMPF debuts a completely redesigned version of its TruBend 3000 bending machine series for the North American market. These enhancements are made possible by various technologies that TRUMPF has already established on the market as part of its TruBend 5000 machine series. The company has reduced the machine’s throughput time by around 40 percent. Depending on the machine type, the new TruBend 3000 will offer a press force ranging from 93 to 253.5 tons and a bending length of 6.5 to 13 feet.
TRUMPF has integrated the proven ACB Laser automatic angle measuring system. An ACB Laser system consisting of a camera and laser sensors measures the bending angle of the component before each bending process. If the angle does not match the value stored in the software, the press beam automatically changes its position until the desired angle is achieved. This ensures consistently high part quality from the very first component, even with material fluctuations. At the same time, scrap is reduced, which also lowers costs.
Also included is the TecZone Bend offline programming software. Users can program the machine while it is producing parts. Programming can even be done on the touchpad directly on the machine. Users upload the 2D or 3D model of their component into the software and within a second, the correct bending sequence and the appropriate tools are displayed on the monitor, including collision monitoring. This allows machine operators to set up the machine for the next job even without programming experience.
With the speed-controlled On-Demand Servo Drive, the machine’s motor only switches on during the bending process. This saves 30 percent of energy compared to a hydraulic drive.
TRUMPF safety features, such as BendGuard, offer machine operators comprehensive injury protection. With the BendGuard, cameras and matrix sensors monitor the machine’s working area. If the software detects any objects other than the component–such as an operator’s hands–the machine switches off immediately.
